Overview

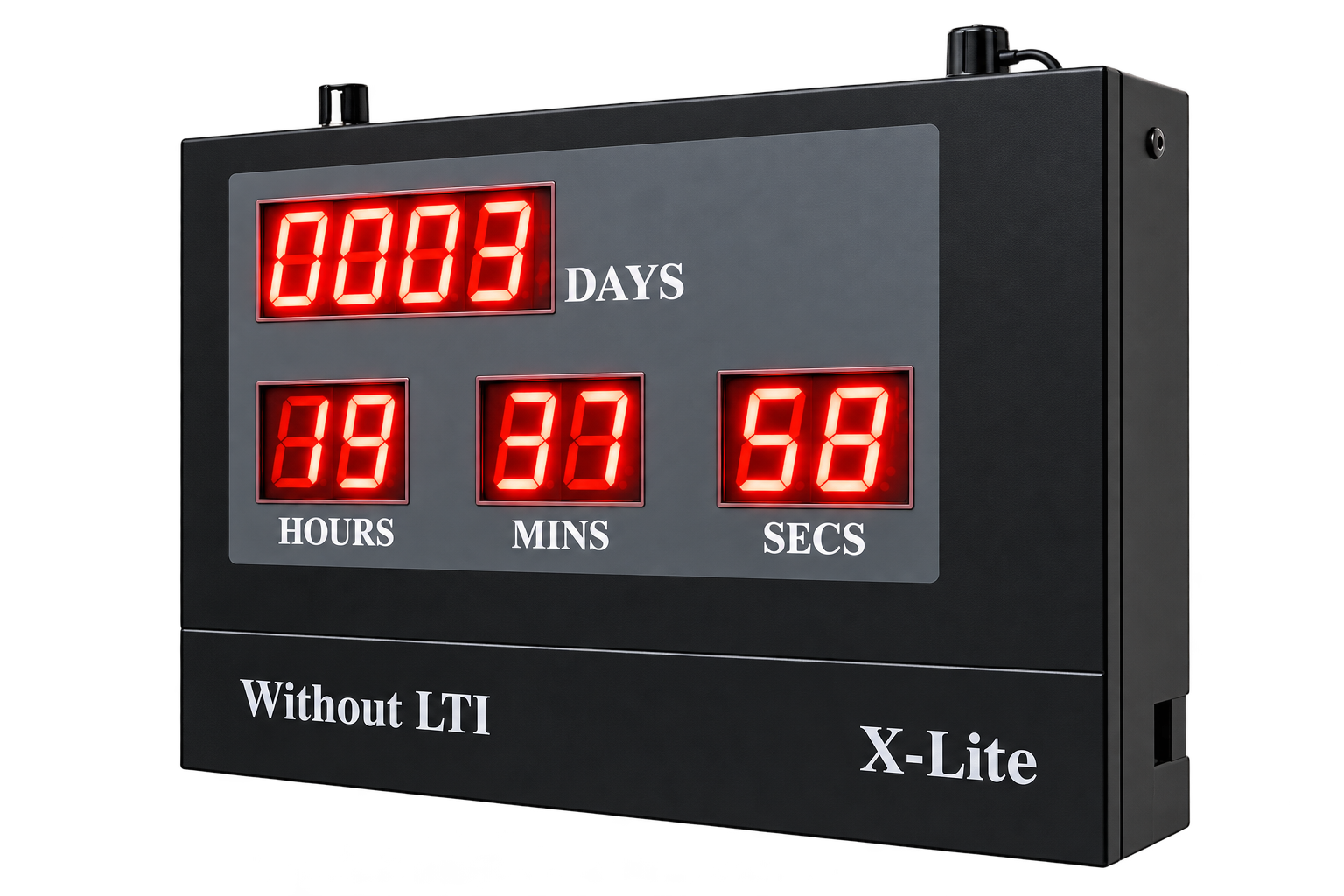

Wall-mounted digital display that continuously shows the time elapsed since the last workplace incident, using a bright 1.8-inch 7-segment LED display readable across a factory floor and an inbuilt real-time clock that keeps counting through power interruptions. Authorized personnel reset the counter and review the last reset date/time via a dedicated Bluetooth mobile app, keeping the safety record tamper-controlled. Used on factory floors, construction sites, and safety awareness boards to keep lost-time-injury performance visible to every worker.
Features
- Real-Time Display: Shows last time incident and continuously updates elapsed time.
- 1.8-inch 7 Segment LED Display: Bright and clear visibility from long distance.
- Bluetooth Connectivity: Reset and monitor using the mobile app.
- App Monitoring: View last updated date and time via app.
- Inbuilt RTC: Maintains accurate timekeeping even during power interruptions.
- Rugged Metal Enclosure: Ensures durability in industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Display Type | 7 Segment LED Display |
| Display Height | 1.8 inch |
| Display Color | Red |
| Displayed Information | 4 digit for Mandays and 6 digit for Time (hh:mm:ss) |
| Clock Type | Real Time Clock (RTC) with battery backup |
| Communication Interface | Bluetooth |
| Mobile App Support | Android |
| Reset Options | Via Mobile App |
| Cabinet Material | Metal Enclosure |
| Power Supply | Inbuilt SMPS – 12V DC / 3A |
| Input Voltage | 110-230V AC ±10%, 50Hz,60 Hz |
| Mounting Type | Wall Mount |
| Operating Temperature | 0°C to +55°C |
| Humidity | Up to 90% RH (non-condensing) |
| Dimensions (W×H×D) mm | 445*300*50 |
| Weight | 4 Kg |
Ordering information
| Model | Configuration |
|---|---|
| RT-LTI-M1-B | Bluetooth · W445*H300*D50 |
Applications
- Factories and Manufacturing Plants
- Office Safety Displays
- Construction Sites
- Safety Awareness Boards
